Course About Pneumatic conveying

-

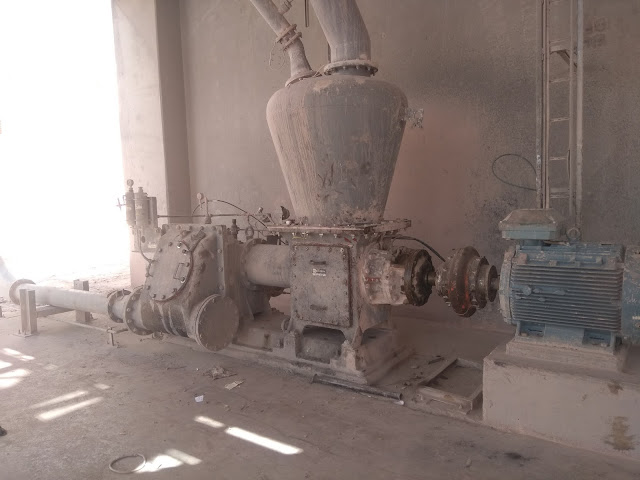

Pneumatic conveying

is the movement of solids through pipe using gas (usually air) as the motive force. It differs from hydraulic or slurry conveying in that the gas expands continuously along the pipe length. The flow regime in the pipe depends greatly on the ratio of solids to gas and the particle characteristics With the appropriate choice of system, material can be transported with minimal degradation  Little or no exposure of the product to the environment  Can transport relatively long distances (several thousand feet)  Excellent for multiple sources and multiple destinations  Ability to transport material which might be air, moisture, etc. sensitive  Compared to mechanical conveyors, relative ease in system routing especially elevation changes  Interfaces well with a variety of transportation modes – truck, railcars, ships  High reliability of system with comparatively few moving parts

AIR SLIDE CONVEYR


AIR SLIDE CONVEYR




AIR SLIDE CONVEYR

AIR LEFT CONVEYR





See More Information

Download

Course about Pneumatic conveying.PPT
